NS Pod
Waste bins are equipped with a small sensor that measures the distance to the content as well as a variety of other data points. Thanks to the small footprint, our sensor can be used in any type of container regardless of their shape, size or content. Thanks to our proprietary technology we are the first company able to measure fill levels in waste bins using plastic bags.
Features
High accuracy 3D topology
Our optical sensor comes with a 256 pixels resolution that enables it to render 3D depth maps of the bin's content. This drastically increases the accuracy of the sensor as multiple reference points and renders false positives a thing of the past.
Service Verification
The sensors are able to detect movement and orientation within the container. This allows us to detect when the containers are being emptied, providing you or your customer transparency into whether services you are paying for are being performed.
Benefits
Size and Content Agnostic
Being able to read targets up to 5 meters away and not being affected by the contents or shape of the container, whether solid or liquid makes the Nordsense POD a great choice for all use cases.
Small Footprint

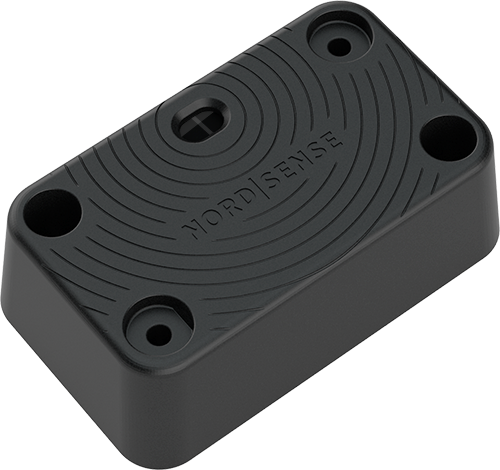

Our smallest POD has similar dimensions to a credit card and is only 3cm tall. This coupled with the black color allows the sensor to be very discreet when installed. Despite the small size, battery life is over 7 years.
No blind spot
Unlike ultrasonic sensors, which are unable to measure any object in the first 25-30cm, our product has no technological constraints, making it perfect fit for even the smallest of bins.
Technical
Specifications
Material
ABS/PC
Weight
310gr
100gr
Dimensions
59mm x 103mm x 52mm
60mm x 97mm x 30mm
Temperature Range
-30°C to 80°C
Connectivity
Global 2G/3G/CAT-M1/NB-IOT
GPS
Optional
Industrial Grade Distance Meter
Optical sensor
Range: 0 to 5 meters
3D Topology aware
Resolution: up to 1mm with multiple points
Accuracy: up to +/- 1%
Temperature sensor
-40°C + 80°C
Water Resistance
IP 66
Frequently Asked Questions
Thanks to our choice of technology and small footprint, the sensor can be installed in any type of container regardless of their shape, size or content. For containers that have a open top (i.e. no lid), we will provide suggestions and designs for a bracket.

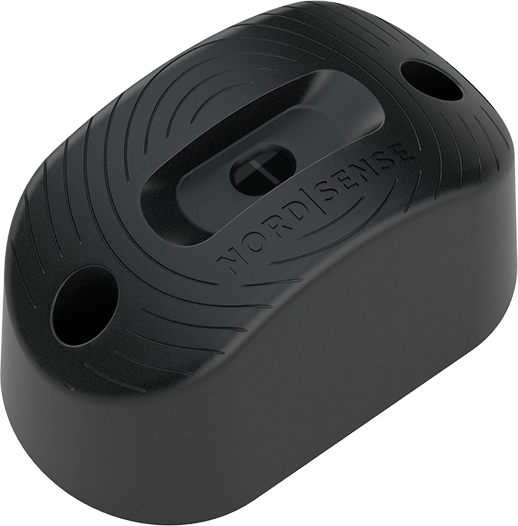

Using the standard settings the sensor is shipped with, the battery lasts 10+ years for the TALL model and 7+ years for the FLAT model. However, battery life is dependent on how frequently the sensor measures and how often it connects to the network.
Absolutely! The sensors have two holes on the sides that are used to mount the sensor on the container. We provide a drilling template and then by either means of nuts and bolts or rivets you secure the sensor to the container. It typically takes no more than 1 minute to install. A user friendly mobile application, will guide you through the installation of the sensor.
Our sensors use the cellular network to communicate with our platform. We have worldwide roaming agreement with one of the largest telecom operator in the world, except for a few countries that do not allow permanent roadming (e.g. Brazil, Saudi Arabia, etc). Special agreements for those countries can however be made upon request.
